AGP003 - RemoteGP Wiring Kit
The RemoteGP Wiring Kit takes the hassle out of installing the RemoteGP in your vehicle.

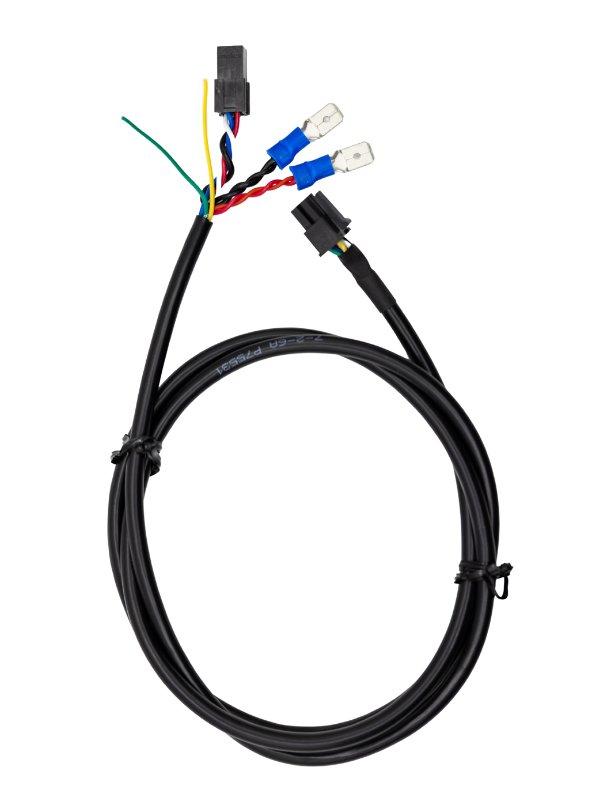

At one end of the cable is the 6-pin mating connector for the Apture RemoteGP. At the other end is a 4-pin connector for our Remote Button with built-in LED, and flying leads for 12V, ground and CAN connections. The 12V and ground are pre-fitted with male spade terminals (mating terminals supplied).
Technical Specifications
- Cable length: 1000 mm
- Pre-terminated with mating connectors for the RemoteGP and Remote Button with built-in LED
- 12V and ground wires terminated with spade terminals (mating terminals supplied)
Cable End A
- 6-pin RemoteGP connector
Cable End B
- 4-pin Remote Button with built-in LED connector
- 12V wire (red) with male spade terminal
- GND wire (black) with male spade terminal
- CAN Low (yellow) and CAN High (green) wires (unterminated)
